Item Number :593400
UPC Code : 663132239184
UNSPSC Code : 40101700

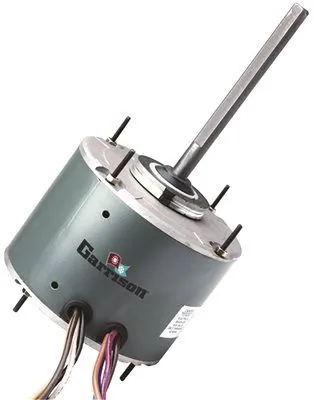

Brand :Garrison
MORE DETAILS- HP: 1/6
- RPM: 1075
- Speeds: 1
- Rotation: REV
- Capacitor MFD: 5
- Volts: 208-230
- Full load amps: 1.3
- Frame: 48
- Body length (inches): 4-1/4
- Motor overall length (inches): 10-9/16
- Shaft length inches): 6
- Motor diameter: 5-5/8"
- Weight (lbs.): 9.5
- Totally enclosed unit
- Installs with all standard 48 frame mounting brackets
- Standard shaft length diameter and flats. Drain holes with plugs in both end plates. Automatic thermal overload protector. Uses standard 370V capacitors. UL recognized thermal protection. Standard motor casing size. Low power consumption. 60 C degree ambient design. Electrically reversible. Continuous duty air over. Class B insulation. Quiet operation extended studs 30" leads 60Hz.
- Capacitor sold separately
- 1 year warranty
